Metric 6mm A1 Centering Vee Attachment

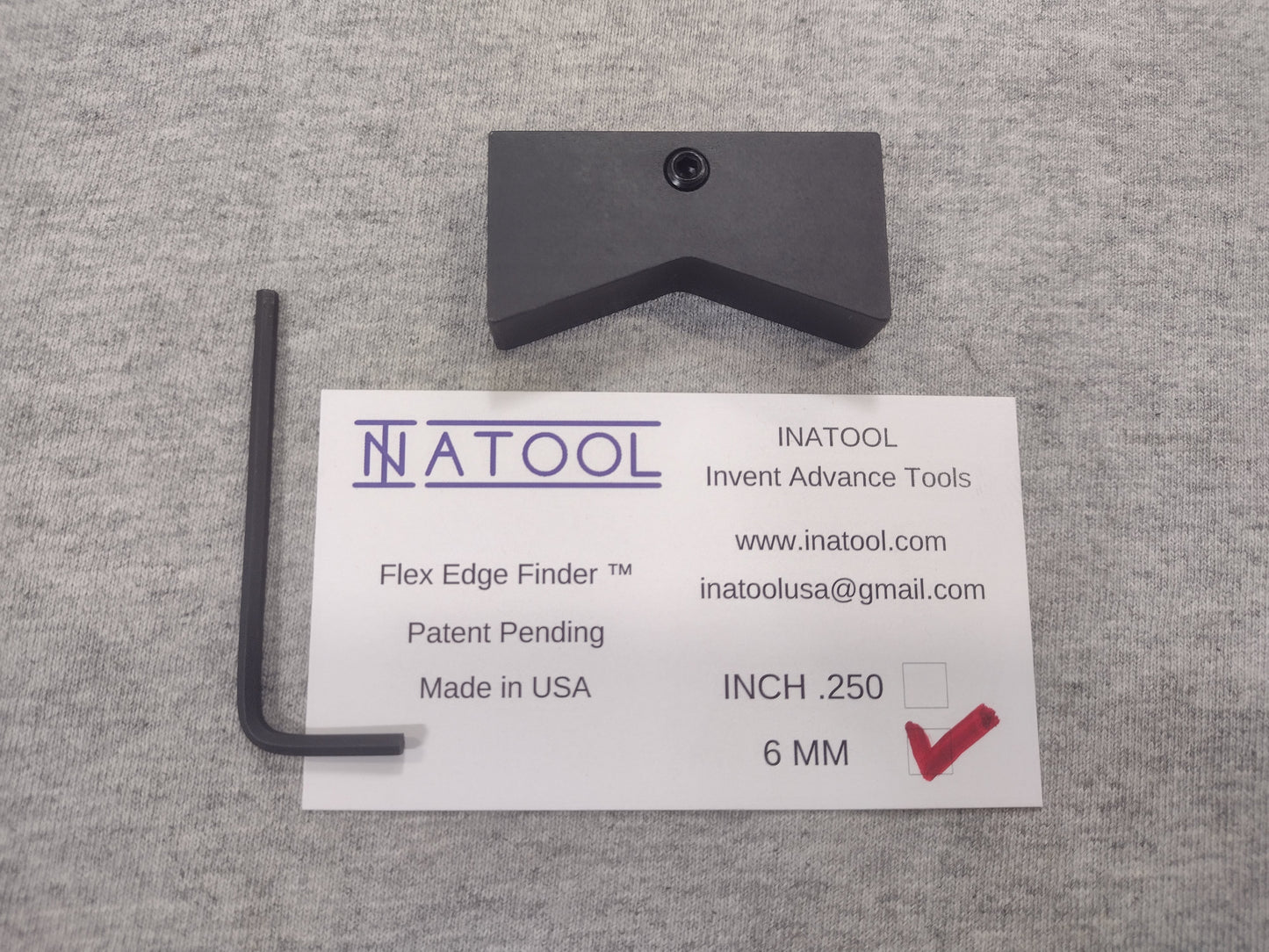

Included: Centering Vee Attachment steel black oxide finish, set screw, hex wrench

Part # A1 = Centering Vee Attachment for use with Flex Edge Finder

The Centering Vee Attachment is made for attaching to the Flex Edge Finder to allow center finding of round parts quickly and precisely. Useful to find center location of workpieces when machining features such as cross holes, keyways on shafts, etc.… The Flex Edge Finder when used with the Centering Vee Attachment allows no extra offsetting of machine axis to find center of workpiece. The Flex Edge Finder with the centering vee is useful for new machines but also older worn machines because the offsetting of the machine axis is reliant on a worn lead screw. With a DRO not as big of a problem. If you want to use an older worn machine the Flex Edge Finder is very useful for precision work. Centering Vee Attachment tolerance .001 from round part center line. Centering Vee Attachment round part diameter range ¼ inch up to 5 inches max diameter. Centering Vee Attachment round part diameter range 6.35mm up to 127mm max diameter. Centering Vee Attachment has an Inch .250 version and Metric 6mm version with the difference being the diameter of the mounting hole.

Mount the Centering Vee Attachment to the Flex Edge Finder. Rotate the Centering Vee Attachment in line with the indicator and tighten the set screw. M5 set screw max torque - 15 inch pounds, 1.69 Nm

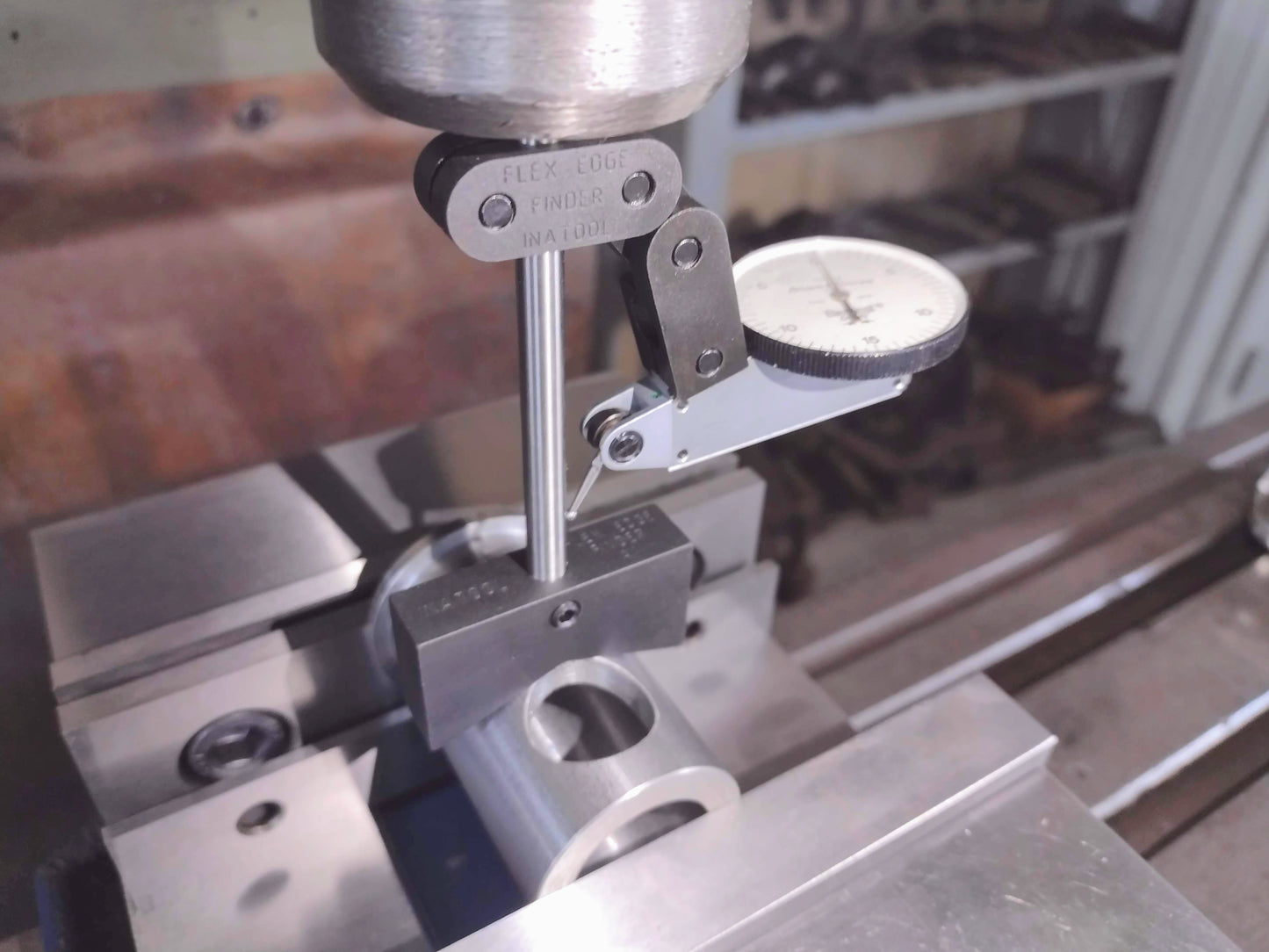

Mount the Flex Edge Finder with vee attachment in machine spindle. Move the vee above the workpiece adjust the x or y axis close to round part center. Lower vee onto part and adjust the x or y axis until indicator on the Flex Edge Finder is zero.

Notice: Use safety glasses if user error occurs the flex shaft may snap. Do not turn on machine spindle with Flex Edge Finder mounted, put machine in neutral.
